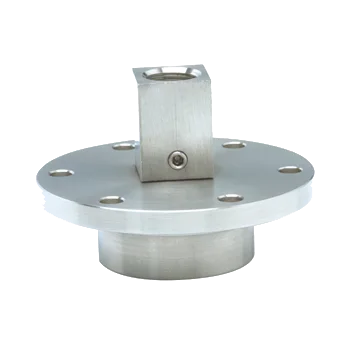

PULP DIAPHRAGM SEAL

,

Floating ring design, Laser welded flush diaphragm, Anti-vibration connectors.

  • Range type: 4…40 bar
  • Diaphragm: AISI 316L SS
  • Sealing fluid: Silicon DC 200 (-40…205°C)
  • Process connection: Floating ring
  • Assembly: Direct

Interested in buying this product?
