GAUGE SIPHON

GAUGE SIPHON – Seamless Loop Protection for High‑Temperature Pressure Instruments

Steam, super‑heated gases, and pulsating lines can destroy a pressure gauge in seconds unless you shield the sensing element from extreme temperature spikes. The GAUGE SIPHON from AIMS Control acts as that vital first line of defense—cooling and cushioning process media before it reaches your instrument. Fabricated from seamless pipes, TIG‑welded for leak‑tight integrity, and hydro‑tested to 160 bar, this accessory is trusted by engineers who insist on field‑proven durability from leading pressure gauge manufactures in Gujrat India.

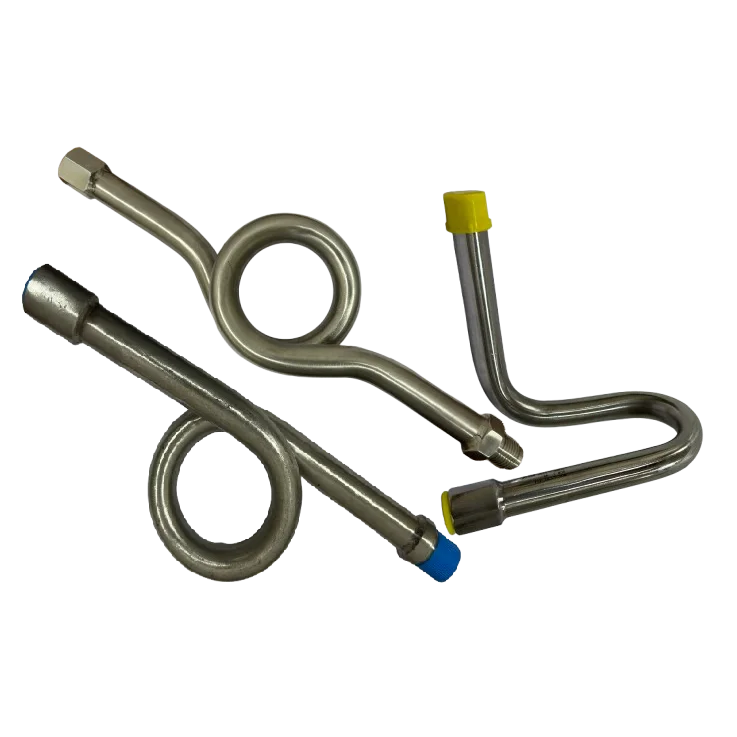

Three Loop Designs—One Rugged Standard

Whichever loop you choose, every GAUGE SIPHON features fully welded threads that eliminate potential leak paths and stand up to repeated thermal cycling.

Why Add a Gauge Siphon?

1. Temperature Protection – The water or condensate trapped in the loop acts as a heat sink, preventing steam burn‑through of gauge Bourdon tubes.
2. Pressure Surge Dampening – The loop slows rapid pressure changes, extending gauge calibration life.
3. Versatile Installation – Multiple loop geometries fit cramped panels, horizontal lines, or boiler headers.
4. Maintenance Friendly – Seamless interior reduces scale build‑up; welded threads resist loosening from vibration.

Typical Applications

• Boilers & Steam Distribution – Safeguards gauges on main steam headers, drum level lines, and PRV stations.
• Petrochemical Plants – Protects instruments monitoring super‑heated hydrocarbons and thermal oil.
• Power Generation – Essential on turbine extraction lines and auxiliary steam systems.
• Pulp & Paper Mills – Shields gauges in high‑temp digesters and evaporators.
• Heating & HVAC Plants – Reliable isolation for district‑heating steam metering.

Quality You Can Trust

Every GAUGE SIPHON undergoes:

• TIG Weld Integrity Check – Dye‑penetrant and visual inspection for root fusion.
• Hydro‑Test at 1.5× Rated Pressure – Ensures zero leaks under worst‑case loads.
• Dimensional & Thread Verification – Guarantees hassle‑free fit during installation.

Material certificates (EN 10204 ‑ 3.1) and hydro‑test reports are available upon request for full traceability.

Why Choose AIMS Control?

• Regional Manufacturing Excellence – Produced in‑house by respected pressure gauge manufactures in Gujrat India, enabling quick deliveries and prompt technical support.
• Custom Fabrication – Alternate alloys (Duplex, Inconel®), special loop sizes, or high‑pressure versions engineered to order.
• One‑Stop Instrumentation Partner – Pair your GAUGE SIPHON with AIMS Control gauges, valves, and diaphragm seals for a fully integrated solution.
• Competitive Lifecycle Cost – Durable seamless construction cuts replacement frequency and downtime.

Get a Quote Today

Protect your pressure instrumentation investment and ensure reliable readings in high‑temperature service with the GAUGE SIPHON from AIMS Control. Contact our experts now for pricing, technical datasheets, or guidance on selecting the right loop design for your steam or gas application.
