Flow

Vane Type (Paddle / Flapper Operated)

Low Cost, Field Adjustable Set Point, and Paddle.

Line Sizes: 1” to 6”
Enclosures: Plastic or Pressure Die-Cast Aluminium
Connection material: Brass or Stainless Steel 316
Connection Size: 1” NPT(M), in Brass
Paddle, Bellows & Flapper: Stainless Steel
Changeover contact: SPDT (1NO+1NC)

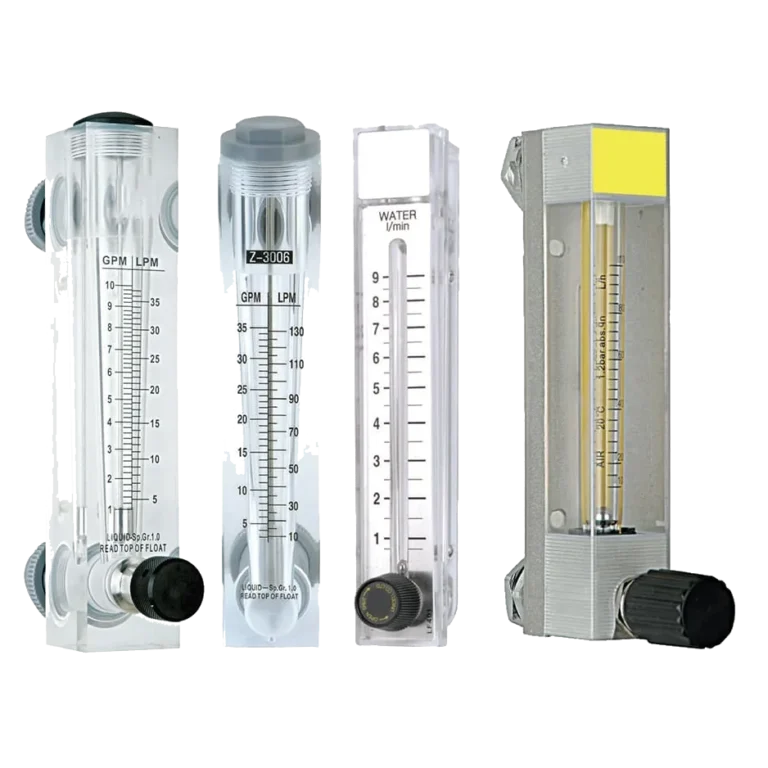

Acrylic Body Rotameter / Flow Meter

Suitable for Water, Saline Water, Air, N2, H2, O2, and Natural Gases etc.

Type: Adjustable Low & High Flow, switch
Body: Acrylic Block Body Imported Transparent Solid
Connection: Flanged, TC joint, BSP (M), BSP (F) Connection
Sizes: Available from ¼” NB to 150 NB
Pipe size and ranges: Between 30 to 80,000 LPH of Water at ambient temperature
Accuracy: 2% FSD
Temperature Ratings: Maximum Operating Temperature rating is 50°C
Pressure Rating: 1 to 15 kg/cm²

Electromagnetic – Inline / Battery Operated

Size: DN3-DN3000mm (1/8”~120”)
Accuracy: ±0.5% of reading,velocity >0.3 m/s
Velocity: 0.1-15 m/s
Signal Output: 4~20 mA, pulse HART
Power Supply: AC85~250V, DC20V~36V

Positive Displacement

Sizes: M-5®, M-7®, M-10®, M-15®, M-25®, M-30®, M-40®, M-60®, M-80®
Max Capacity: 800 GPM / 3,028 LPM (180 M3/hr)
Max Pressure: 150 PSI / 10.3 Bar / 1034 kPa
Max Viscosity: 30-1,500,000 SSU, or 1cP to 325,000cP
Temperature Range: -40°F to 160°F

Ultrasonic Clamp On Type

Linearity: 0.5%
Repeatability: 0.2%
Accuracy: ±1% of reading at rates>0.2 mps
Response Time: 0-999 seconds, user-configurable
Velocity: ±32 m/s
Pipe Size: 20mm-6000mm

Turbine

Size & Process Connection: DN4, 6, 10, 15, 20, 25, 32, 40; Thread connection, DN15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 200, Flange connection
Accuracy/Range ratio: ±0.5%R; 1:10; 1:15; 1:20
Sensor Material: SS304, SS316(L)
Output: Pulse, 4-20mA, HART
Power Supply: A: +24VDC, for 4-20mA , pulse, RS485 output
B: 3.6 V lithium battery, battery voltage: 2.0 V ~3.0 V

Variable Area

Fluids Measured: Steam, Gases, and Liquids
Flow Range: 10:1 turndown
Accuracy: ±1.0% & ±1.5% &± 2.5%
Max. Process Temperature: 150℃ – 350℃
Nominal Operating Pressure: DN15DN50:4.0Mpa, DN65 DN200:1.6Mpa
Max. Pressure Rating: DN15:32Mpa; DN25:25Mpa; DN50:20Mpa, DN80:10Mpa; DN100:6.4Mpa, DN125 DN150:4.0Mpa

Vortex

Fluids Measured: Steam, Gases, and Liquids
Flow Range: 30:1 turndown
Liquids: 1.0 ft/s (0.3 m/s) Velocity Min. 30 ft/s (9.14 m/s) Velocity Max
Digital Communications: HART, Modbus, Profibus DP, Foundation Fieldbus, BACnet, USB, RS-232 Hazardous
Area Approvals: CE, cFMus, ATEX, PED, IECEx

Thermal Mass

Medium: Gas (except acetylene)
Pipe Range: DN100-DN4000, DN10-DN2000
Velocity: 0.1~120 Nm/s
Accuracy: ±1% , ±2.5%
Working Temperature: -40℃～+220℃
Working Pressure: ≤2.5 MPa, ≤4.0 MPa

Coroliss Mass

Max. flow rate: 200kg/min
Wetted parts: Stainless steel 316L
Sensor housing: Stainless steel 304
Fluid temperature: -200~200°C
Temp. Accuracy: ±1°C
Operating Voltage: AC85~265V, DC24V

Flow Measurement Instruments Manufacturer & Supplier India

We are a leading manufacturer and supplier of precision flow measurement instruments, serving industries that demand accuracy, reliability, and long-term performance. Our products are engineered to measure the flow of liquids, gases, steam, and slurries under varying pressure and temperature conditions, making them suitable for a wide range of industrial applications.

Our Product Range

We manufacture and supply a comprehensive lineup of flow measurement instruments, including:

Electromagnetic Flow Meters: Ideal for conductive liquids with no moving parts and minimal maintenance.
Ultrasonic Flow Meters: Non-invasive measurement suitable for large pipelines and retrofit installations.
Vortex Flow Meters: Reliable for steam, gas, and liquid applications with a wide turndown ratio.
Coriolis Flow Meters: Direct mass flow measurement with exceptional accuracy for high-value fluids.
Differential Pressure Flow Meters: Cost-effective solutions using orifice plates, venturi tubes, and flow nozzles.
Rotameters (Variable Area Meters): Simple and dependable visual flow indication for low-flow applications.

Industries We Serve

Our instruments are trusted across a broad spectrum of industries. From oil and gas pipelines to pharmaceutical manufacturing lines, our products are built to perform in the most demanding environments. Key sectors we serve include:

Oil & Gas and Petrochemicals
Water & Wastewater Treatment
Pharmaceuticals & Food Processing
Chemical & Power Generation Plants
Mining, HVAC, and Building Utilities

Why Choose Us

Choosing the right manufacturer matters, not just for product quality, but for the support and reliability that come with it. Here is what sets us apart:

In-House Manufacturing: Full control over quality at every stage of production.
Custom Engineering: Instruments tailored to your specific process, fluid, and output requirements.
International Certifications: Products compliant with ISO, CE, ATEX, and IECEx standards.
Fast Turnaround: Standard models dispatched within 48–72 hours from our stocked inventory.
Technical Support: Dedicated engineers available for product selection, installation, and troubleshooting.
Competitive Pricing: Direct-from-manufacturer rates without middlemen markups.

Quality Assurance

Quality is at the core of everything we produce. Every instrument is calibrated against traceable standards and goes through a thorough Factory Acceptance Test (FAT) before dispatch. Our in-house calibration laboratory ensures that each product meets both customer specifications and international performance benchmarks.

OEM & Export Supply

We actively partner with OEM manufacturers and project contractors to develop integrated flow measurement solutions. With export experience spanning over 40 countries, we provide complete documentation, country-specific certifications, and reliable on-time delivery to clients worldwide.

Get in Touch

If you are looking for a dependable flow measurement partner, we are here to help. Contact us today to:

Request a product catalog or technical datasheet
Get a customized quote for your project
Speak with our application engineers for guidance

We are committed to delivering quality instruments, on time and within budget, every time.
