What is a Level Indicator?
A Level Indicator is an advanced and innovative device installed in industrial tanks, silos, or reservoirs to continuously monitor and indicate liquid levels. This monitoring ensures efficient management of industrial fluids such as chemicals, oil, fuel, and other process liquids, preventing shortages, overflows, and wastage.
The system functions through a combination of high-precision sensors, automated control systems, and a display unit. The sensors detect the liquid level within the tank or reservoir, and the display unit provides real-time data for operators to track fluid levels accurately. The control systems are programmed to regulate pumps, valves, and alarms based on detected levels, ensuring smooth and automated industrial processes.
By offering constant monitoring and automation, Level Indicators play a crucial role in optimizing resource utilization, enhancing safety, and improving operational efficiency across industries. Whether in chemical processing, oil refineries, food & beverage production, or pharmaceutical manufacturing, these devices help maintain precision in liquid management while preventing costly errors and ensuring compliance with industry standards.
Principle of Level Indicators
The working principle of Level Indicators in industrial applications is based on fundamental scientific concepts such as electrical conductivity, pressure, and ultrasonic or radar-based detection.
How Industrial Level Indicators Work
Industrial Level Indicators use sensors to detect liquid levels and generate signals, which are then transmitted to a control panel. Based on these signals, the system automates processes such as pump activation, valve control, or issuing alerts to ensure seamless industrial operations.
Types of Level Indicators and How do they Work
Float Level Indicators
Float level indicators, also known as displacement level indicators, are among the most common types used in industrial applications. They consist of a floating device connected to a measuring rod or tape. As the liquid level changes, the floating device moves, providing a corresponding level measurement. These indicators are versatile, cost-effective, and suitable for a wide range of liquids.
Ultrasonic Level Indicators
Ultrasonic level indicators are non-contact devices that utilize sound waves to measure liquid levels. They emit ultrasonic pulses towards the liquid surface and measure the time taken for the echoes to return. This method provides high accuracy and is ideal for applications where contact with the liquid is undesirable, such as in corrosive or hazardous environments.
Conductive Level Indicators
Conductive level indicators operate on the principle of electrical conductivity. They are equipped with electrodes that detect the presence of conductive liquids. These indicators are highly durable and reliable for measuring the levels of electrically conductive liquids, making them suitable for industries dealing with such substances.
Magnetic Level Indicators
Magnetic level indicators utilize a float containing a magnet that moves with the liquid level inside a chamber. An external indicator, often a series of magnetic flags or a bar graph, responds to the float’s position, providing a clear visual representation of the liquid level. With a robust and ergonomic design, these indicators can withstand harsh environments and are commonly used in industries with challenging working conditions.
When selecting a level indicator for industrial purposes, it’s essential to consider factors such as the type of liquid, environmental conditions, and accuracy requirements. The right choice not only ensures the reliability of measurements but also contributes to the overall safety and efficiency of industrial processes.
Working of Level Indicators
In industrial applications, Level Indicators are essential devices that monitor and control the levels of various liquids—such as chemicals, oils, and other process fluids—in tanks, reservoirs, and silos. Their operation can be summarized in a three-step process: detection, alerting, and automation.
Detection:
Sensors are strategically placed at multiple levels within the industrial container to detect the presence or absence of the target liquid. The choice of sensor technology depends on the specific application and the properties of the liquid:
- Conductivity Sensors: Utilize the electrical conductivity of the liquid to determine its level. When the liquid contacts the sensor, it completes an electrical circuit, indicating its presence.
- Pressure Sensors: Measure the pressure exerted by the liquid column at different depths. The pressure readings correlate with specific liquid levels, allowing for precise monitoring.
- Ultrasonic Sensors: Emit ultrasonic waves that reflect off the liquid surface. The time taken for the echo to return is calculated to determine the liquid level.
- Float Switches: Employ buoyant floats that rise and fall with the liquid level, triggering mechanical or magnetic switches to indicate specific levels.
Alerting:
Once the sensors detect the liquid level, they transmit signals to a central control panel. The control panel processes these signals to determine the current status of the liquid—whether it is at a critical low, optimal, or high level.
Automation:
Based on the processed information, the control panel initiates automated responses to maintain optimal liquid levels and ensure safe operations:
- Activating Pumps: If the liquid level is detected to be too low, the system can automatically start pumps to add more liquid into the container.
- Issuing Alerts: When the liquid reaches optimal levels, the system can send notifications to inform operators that the levels are within the desired range.
- Stopping Inflow or Activating Alarms: In cases where the liquid level is too high, the system can halt the inflow to prevent overflow or trigger alarms to alert personnel of potential hazards.
The effectiveness of Level Indicators heavily relies on the performance of their sensors. A failure in timely detection or signal transmission can compromise the entire monitoring system. Therefore, selecting appropriate sensor technology and ensuring regular maintenance are critical for reliable operation in industrial environments.

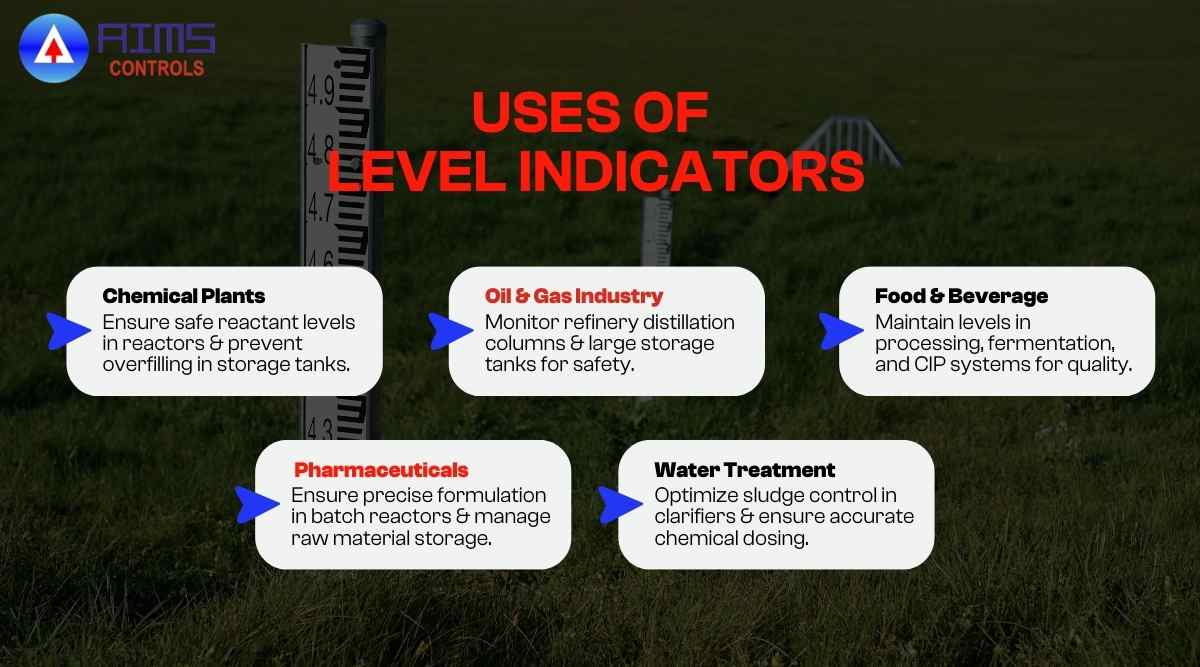

Uses of Level Indicators
Chemical Processing Plants
- Reactor Vessels: Maintaining precise liquid levels in reactors is crucial for optimal chemical reactions. Level indicators ensure that reactants are at appropriate levels, preventing hazardous conditions.
- Storage Tanks: Accurate monitoring of chemical storage tanks prevents overfilling and ensures inventory control, contributing to safe and efficient operations.
Oil and Gas Industry
- Refinery Operations: In refineries, level indicators monitor liquid levels in distillation columns and separators, ensuring efficient separation processes and preventing equipment damage.
- Storage Facilities: Monitoring levels in large oil storage tanks is vital to prevent spills, manage inventory, and comply with safety regulations.
Food and Beverage Industry
- Processing Tanks: Maintaining proper levels in mixing and fermentation tanks ensures product consistency and quality.
- CIP Systems: Level indicators are used in Clean-In-Place systems to monitor cleaning solution levels, ensuring effective sanitation processes.
Pharmaceutical Manufacturing
- Batch Reactors: Precise level measurement in batch reactors is essential for accurate formulation and to maintain stringent quality standards.
- Storage Vessels: Monitoring levels in storage vessels helps in managing raw materials and final products efficiently.
Water and Wastewater Treatment
- Clarifiers and Settling Tanks: Level indicators monitor sludge levels to optimize the treatment process and prevent overflow.
- Chemical Dosing Systems: Accurate level measurement in chemical dosing tanks ensures proper treatment of water and compliance with environmental regulations.
Implementing appropriate level indicators tailored to specific industrial applications enhances process control, safety, and efficiency. Selecting the right type of level indicator, considering factors such as liquid properties, operating conditions, and required accuracy, is crucial for optimal performance.
AIMS Controls‘ range of Level Indicators is suitable for diverse applications and can offer you a great choice.
Advantages of Level Indicators
Prevention of Liquid Wastage
By providing precise monitoring and control of liquid levels, level indicators prevent overflows and leaks, ensuring that valuable resources are utilized efficiently and reducing waste.
Enhanced Operational Efficiency
Automated monitoring systems eliminate the need for manual checks, allowing for real-time adjustments and continuous operations. This automation leads to increased productivity and optimal use of resources.
Improved Safety Measures
Accurate level monitoring prevents hazardous situations such as tank overflows or dry running of pumps, thereby reducing the risk of accidents and ensuring a safer working environment.
Prolonged Equipment Lifespan
By maintaining appropriate liquid levels, level indicators help prevent conditions that can cause wear and tear on equipment, such as cavitation in pumps or corrosion in tanks, thereby extending the lifespan of industrial machinery.
Cost Savings
Through efficient liquid management and reduced manual intervention, level indicators contribute to significant cost savings in terms of resource utilization, maintenance, and labor.
Factors to Consider When Choosing an Industrial Level Indicator
Selecting the right level indicator is crucial for ensuring efficiency, accuracy, and safety in industrial applications. The choice depends on various factors related to the type of liquid, operating conditions, and specific process requirements. Here are key considerations
Type of Industrial Application
- Is the level indicator required for chemical processing, oil and gas, pharmaceuticals, food and beverage, or another industrial sector?
- Will it be used in storage tanks, pipelines, reactors, or other critical process equipment?
Compatibility with Liquid Properties
-
- Can the indicator handle corrosive, viscous, or volatile liquids?
- Does the material of the indicator resist chemical reactions with the liquid being measured?
Accuracy and Reliability Requirements
-
- What level of precision is needed for the application?
- Does the indicator provide real-time and continuous level monitoring for process optimization?
Budget and Cost-Efficiency
-
- Does the indicator offer a cost-effective solution without compromising accuracy and durability?
- Is the investment justified by the long-term benefits in operational efficiency and safety?
Maintenance and Durability
-
- What are the long-term maintenance requirements and costs?
- Can the indicator withstand extreme industrial conditions such as high pressure, temperature fluctuations, or hazardous environments?
Choosing the right industrial level indicator enhances operational efficiency, prevents process disruptions, and ensures safety in liquid handling across various industrial applications.
These questions go a long way in helping you arrive at the right decision. In case you are confused, you can consult AIMS Controls for expert advice on selecting the best Level Indicator for your needs.
Why Choose AIMS Controls for Level Indicators?
AIMS Controls is an industry leader in offering advanced and innovative solutions for water management. There are several reasons to choose AIMS Controls which include:
- Unmatched experience and expertise in delivering the best and highest quality water management systems and solutions.
- Customization options to provide solutions tailored to customers’ specific and unique requirements.
- High performance and long-term durability of products is a proof of commitment to quality.
- Prioritized customer satisfaction through constant support, guidance, and after-sales services.
Conclusion
Industrial liquid management for sustainable and efficient use is crucial in today’s operational landscape, and Level Indicators are the ideal tool for achieving this. These devices are essential for optimizing processes and maintaining the correct liquid levels across various industrial applications. With a deep understanding of how Level Indicators work, industries can make informed decisions about integrating them into their systems, ensuring maximum operational efficiency and safety.
AIMS Controls is committed to providing top-quality Level Indicators tailored to meet the unique and diverse requirements of various industrial sectors, ensuring precise and reliable liquid level monitoring for optimal performance.
